GX-QDLP2450-R50 flat and bend tempered glass machine

FOB Reference Price:Get Latest Price
$150,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GX-QDLP2450-R50
Max. Glass Size:
2440*5000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 1 Year
Machine Type:
Glass Tempering Furnace
Production Capacity:
15-18 Loads/h
Power(W):
1030KW
Certification:
CE
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Place of Origin:
Henan, China
Brand Name:
GANGXIN
Voltage:
220V/380V/415V
Dimension(L*W*H):
26000*3500*2700
Weight:
25ton
Name:
Horizontal Glass Tempering Machine
Application:
Architecture
Usage:
Make toughened Glass
Glass thickness:
4-19mm
Type:
Horizontal
Color:
Grey
Tempering type:
Flat and bend Tempering Furnace
Product name:
glass tempering production line
Supply Ability
Supply Ability:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
In container. Packed in standard export packing-suitable for long distance shipping.
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

Product Application

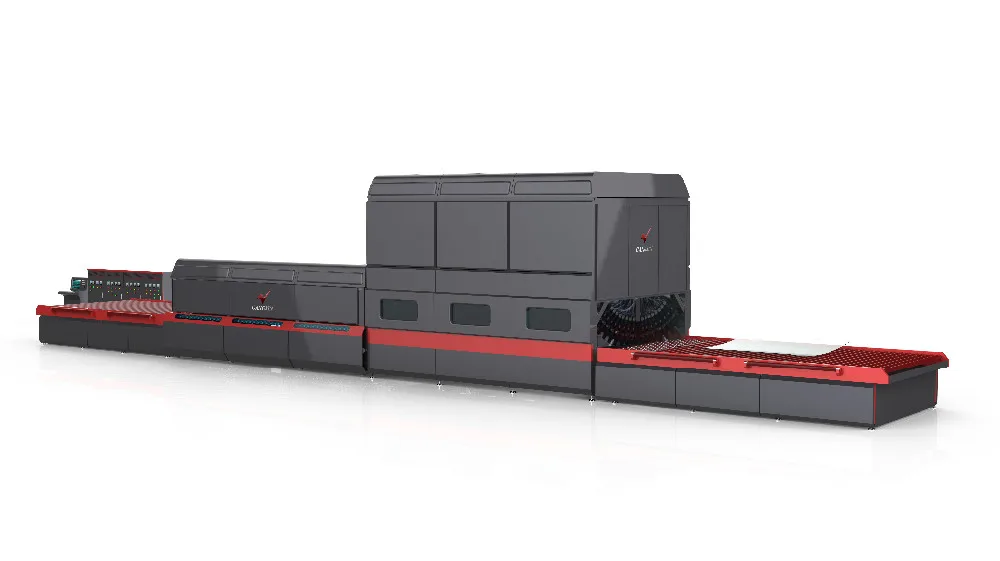

GX-(QDL)PR Series Horizontal Roller Hearth Flat & Bend Glass Tempering Furnace (Soft Rollers Bending) is mainly used to produce huge size tempered glass for curtain walls of building.

Main Features

Classification:
1. Radiation heating    (option 1)
2. Top convection heating   (option 2)
3. Full convection heating (Top & Bottom) (option 3)
4.Complete Glass Size:  Max 2440*5000mm, Min 100*300mm
5.Perfect Quality Standard: Up to GB9963, GB9656, ECER43, ANSIZ97.1
6.Widely Applicability: Float Glass, Coated Glass, Patterned Glass and curtain wall and others
7.Advanced Heating: Matrix and Smart Temperature Control, Low power consumption
8.Easy Operation: Automatic control and diagnosis program, easy-understand interface.
9.High Capacity : suitable for making the curtain wall for architectural use
Certifications
Detailed Images

Machine Parts

Name: Ceramic roller
Brand: Vesuvius
Original: China

Main Features

Name: PLC
Brand: Omron
Original: China

Machine Parts

Name: Photoelectric switch
Brand: Omron
Original: China

Main Features

Name: Inverter
Brand: SIEMENS
Original: China

Our Service

Pre-Sales Service

* Guidance for the most suitable tempering line.
* Advice for the customer's workshop.
* Arrange visiting the runing machine and our company.
* Other contract details.

After-Sales Service

*7*24 hour online after-sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
15 T



Packaging Details
The normal package is standard export package(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
10 T



Packaging Details
The normal package of cameric roller is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Workshop

Once another workshop finished in two month.the total area will be reach around 10000 sqm,and we will have enough space to release our production capacity.

Company


Luoyang Gangxin Glass Technology Co,.Ltd located in Luoyang, Henan Province , which is the most famous Glass and Glass Tempering Furnace Manufacture Bases in China. In March 2007, Luoyang Administration for Industrial and Commercial Bureau approved the establishment of the Luoyang Gangxin, which is a modern and professional manufacture enterprise of Glass Processing Machinery.

After years of hard efforts,we realize the great leap forward development zero started.At the same time,we get the Foreign Trade Autonomy.The experienced technical team,the mature manufacturing process and perfect technical support make GX series glass processing equipments won widespread praise from our customers.

The main products are: GX Series Horizontal Rollers Hearth(Forced Convection) Flat Glass Tempering Furnace, GX Series Horizontal Rollers Hearth(Forced Convection) Flat & Bend Glass Tempering Furnace(Hard Rollers Bending and Soft Rollers Bending),GX Series Horizontal Rollers Hearth Double Chambers(Forced Convection) Flat Glass Tempering Furnace, GX Series Horizontal Rollers Hearth Continuous(Forced Convection) Flat Glass Tempering Furnace, GX Series Asymmetrical Bend Glass Tempering Furnace, GX Series Double Curved Bend Glass Tempering Furnace, GX Series Bend Glass Tempering Furnace(Hard Rollers Bending and Soft Rollers Bending) etc.

As a professional glass processing machinery manufacturer, Quality First, Integrity First,Service Foremost and Customer Foremost is our philosophy. The service of enterprise is improved constantly, and the mot skilled installation and after-sale service team has been built for promoting service,which helps to build up our image and our own brand!

As far now, Gangxin machinery are all over the country, and in most of big cities, we've set Service Department; At abroad, Gangxin machinery are so;d to more than 20 countries, including India, Thailand, Cambodia, Iran, Pakistan, Korea, Turkey, Russia, Abu Dhabi, Dubai, Algeria, France, Canada, America, Australia, Brazil, Guatemala, Kosovo etc.
